產品展示

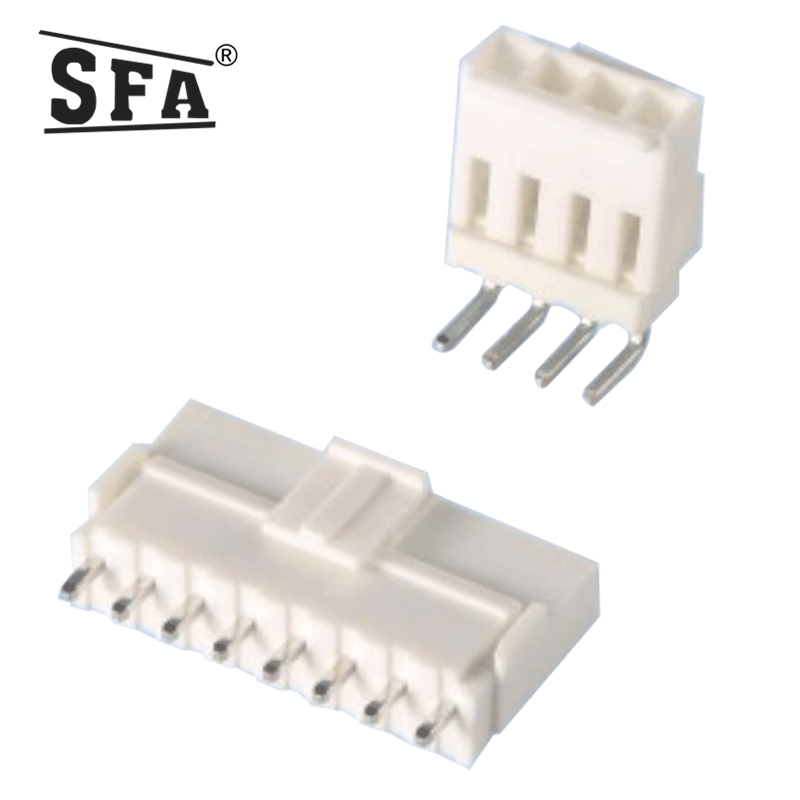

產品名稱：VH-3.96
產品編號：271
|
產品編號/ITEM |
271 |
|
產品名稱/NAME |
VH-3.96 |
|
產品間距/PITCH |
3.96mm |
|
電氣性能/Electrical |
|
|
接觸電阻/Contact Resistance |
30mΩmax.DC100mA |
|
絕緣電阻/Insulator Resistance |
1000MΩmin.atDC500v |
|
耐電壓/Withstanding voltage |
AC500V/1Min |
|
材質和電鍍/Material |
|
|
塑件/Housing |
Nylon66 |
|
觸點材料/Contact |
Copper（黃銅） |
|
端子/Terminal |
Phosphorous bronze（磷青銅） |
|
位數/Poles |
2P-20P |
