產品展示

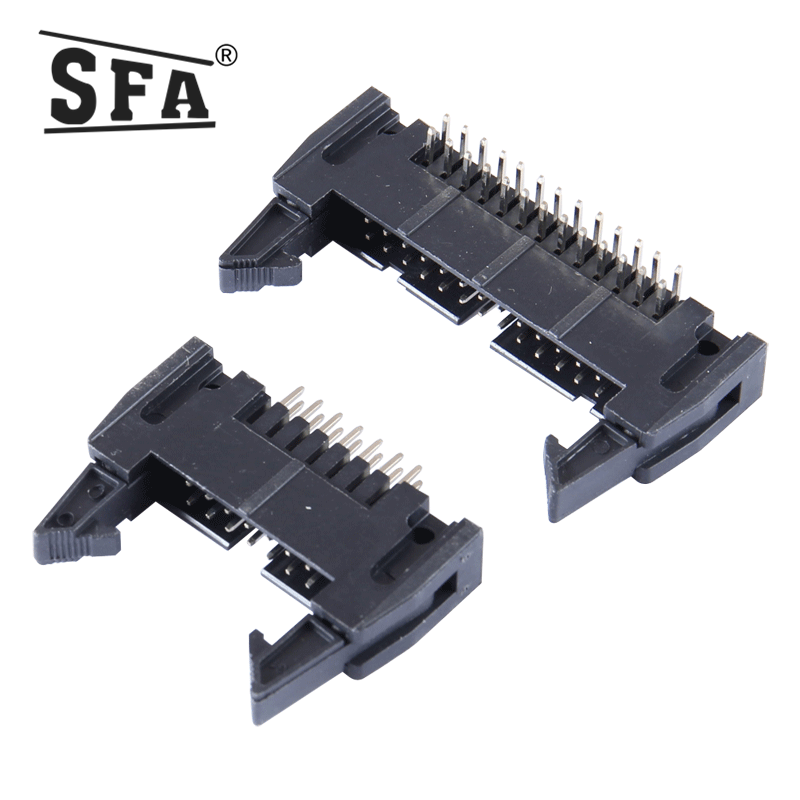

產品名稱：DC2-大耳
產品編號：110-B
|
產品編號/ITEM |
110-B |
|
產品名稱/NAME |
DC2-大耳 |
|
產品間距/PITCH |
2.54mm |
|
電氣性能/Electrical |
|
|
接觸電阻/Contact Resistance |
30mΩmax.DC100mA |
|
絕緣電阻/Insulator Resistance |
1000MΩmin.atDC500v |
|
耐電壓/Withstanding voltage |
AC500V/1Min |
|
材質和電鍍/Material |
|
|
塑件/Housing |
PBT&20%Glass Fiber |
|
觸點材料/Contact |
Brass（黃銅） |
|
位數/Poles |
6P-64P |
