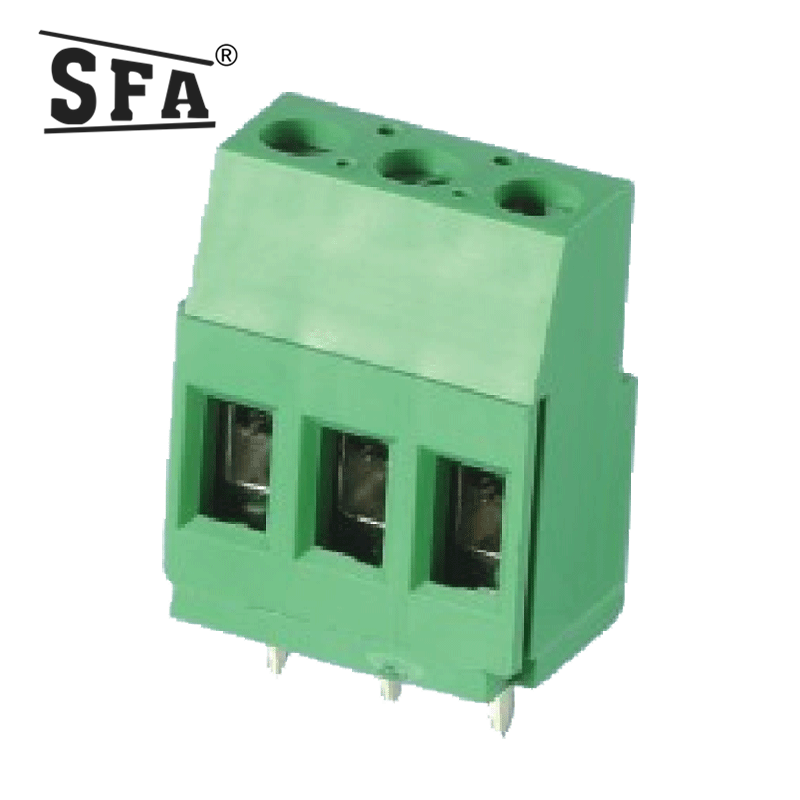

產品名稱：QA03
產品編號：
|
產品名稱/NAME |
QA03 |
|
|
產品間距/PITCH |
5.08mm |
|
|
Standard/參考標準 |
UL |
CE |
|
電氣性能/Electrical |
||
|
額定電壓/Rated voltage |
300V |
250V |
|
額定電流/Rated current |
20A |
20A |
|
導線線徑/Wire range |
26-12AWG2.5mm2 |
|
|
耐電壓/Withstanding voltage |
AC2500V-1Min |
|
|
機械性能/Mechanical |
||
|
扭矩力/Torque |
0.4Nm（4.4Lb-In） |
|
|
溫度范圍/Ambient temperature |
-40℃~ +105℃ |
|
|
剝線長度/Strip length |
7mm |
|
|
材質和電鍍/Material |
||
|
塑件/Housing |
PA66 |
|
|
螺絲/Screws |
M2,Steel，Cr3+Zn Plated |
|
|
觸點材料/Contact |
Brass，Tin-plated |
|
|
方盒/Cage |
Brass，Ni-plated |
|
